Overview

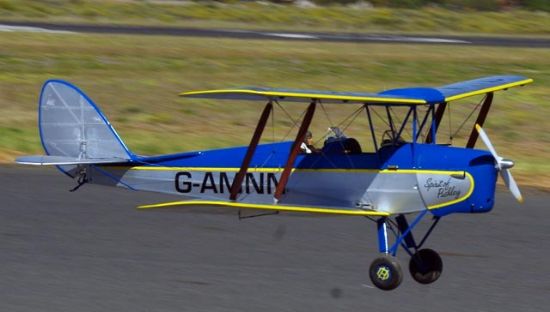

The OK Model Pilot 1/4 scale De Havilland Tiger Moth is a faithful reproduction of the legendary British training biplane, designed by the acclaimed Japanese designer Y. Matsumoto. With an 88-inch wingspan and 2247 square inches of wing area, this model captures the distinctive character of the aircraft that trained thousands of pilots during World War II. The design features snap-lock construction plywood fuselage and neatly die-cut balsa wing ribs, making for a straightforward build that results in a superb flying model.
This Varlocity Laser & Models laser-cut short kit provides the precision-cut components required to begin construction, allowing builders the satisfaction of completing the remaining structure using traditional techniques. The kit is ideal for modellers looking for a practical and enjoyable giant-scale project.
Aircraft History
The de Havilland D.H.82 Tiger Moth was the most popular and most famous British training aircraft of World War II. First flown in 1931, the Tiger Moth served as the primary trainer for the Royal Air Force and Commonwealth air forces throughout the war. It was derived from the highly successful D.H. 60 Moth series of civilian aircraft that included the famous Gypsy Moth.
Nearly 50 years after its introduction, many surviving machines continue to fly as civil aircraft, a testament to the enduring design. The Tiger Moth's distinctive biplane configuration, open cockpits, and characteristic sound made it a favourite with pilots and ground crews alike. Its docile flight characteristics and forgiving handling made it the ideal aircraft to train the thousands of pilots who would go on to fly Spitfires, Hurricanes, and Lancasters in combat.
More than 7,000 Tiger Moths were built, making it one of the most produced training aircraft in aviation history. Today, the Tiger Moth is a beloved fixture at air shows worldwide, and its classic lines continue to inspire model builders.
About the Model
This 1/4 scale model of the Tiger Moth was designed by Y. Matsumoto for OK Model Pilot in 1978. The design features a snap-lock construction plywood fuselage and die-cut balsa wing ribs, making for a strong and accurate build. The plan includes full-size templates for all required parts, allowing builders to cut a complete kit before starting construction.
The model is designed for .60 to .90 two-stroke glow engines or equivalent power. The flight characteristics are superb, with the model being described as "very docile" with "great scale presence in the air." The traditional balsa and ply construction uses conventional modelling tools and materials, making it a rewarding project for experienced builders.
Features
- Precision laser-cut balsa and plywood components
- Based on the original OK Model Pilot kit design by Y. Matsumoto
- Snap-lock construction plywood fuselage for accurate alignment
- Neatly profiled balsa wing ribs
- Traditional built-up construction
- Large 88-inch wingspan for impressive scale presence
- Designed for .60-.90 glow or equivalent gas engines
- Scale-faithful British biplane outlines
- Proven flying characteristics
- Manufactured by Varlocity Laser & Models
Why You'll Love Building It
- Traditional stick-built aeromodelling that's enjoyable from the first rib to final covering.
- A rewarding project for scale enthusiasts.
- The snap-lock plywood fuselage makes for a strong and accurate build.
- Excellent flying characteristics with great scale presence in the air.
- A proven OK Model Pilot design that has stood the test of time.
What's Included
- Precision laser-cut plywood fuselage components (snap-lock construction)
- Laser-cut balsa wing ribs
- Laser-cut plywood formers
- Wing ribs
- Tailplane components
- Fin and rudder components
- Lite-ply structural parts
- Additional laser-cut structural components shown on the original plan
- Complete set of epoxy glass parts for Cowling, oil cooler, fuel tank, hub caps
Only the precision laser-cut wooden parts are supplied.
NB: Because there is quite lot of specific sizes the kits includes a lots of balsa strips, as part of this short kit. We can leave it out on request.
What's Required
Mandatory Items
- Original OK Model Pilot plans - Available separately on Outerzone
- Strip wood
- Sheet balsa
- Plywood sheeting where required
- Building board
- Adhesives
- Covering materials
- Hinges
- Control linkages and pushrods
- Landing gear
- Wheels
- Hardware
- Power system
- Radio system
Recommended Accessories
- Formed ABS plastic cowl (available separately)
- Clear plastic windshields
- Colored scale stickers
- Detailed instrument panel
- Spinner for chosen engine
- Fuel tank
Verified Specifications
| Specification | Value |
|---|
| Designer | Y. Matsumoto |
| Aircraft | De Havilland Tiger Moth |
| Scale | 1/4 |
| Wingspan | 88 in (2235 mm) |
| Length | Not specified on the original plan |
| Wing Area | 2247 sq in |
| Flying Weight | Not specified on the original plan |
| Power Type | .60-.90 glow engine (or equivalent) |
| Construction | Balsa and plywood |
| Radio Functions | 4 (Aileron, Elevator, Rudder, Throttle) |
| Difficulty | Advanced builder |
Recommended Equipment
- .60 to .90 two-stroke glow engine, 1.20 to 1.50 four-stroke, or 25cc to 30cc petrol engine
- Appropriate propeller for chosen engine
- 4-channel radio system
- High-torque servos appropriate for a 1/4 scale model
- Appropriate fuel tank
- Spinner
These recommendations are based on the original design documentation and common 1/4 scale building practice. Builders may select equivalent modern equipment to suit their preferences.
Builder Notes
- Suitable for advanced builders familiar with large-scale models.
- The snap-lock plywood fuselage is a feature of this design, making for a strong and accurate build.
- As with many large-scale plans, some builders have noted that the plans leave room for builder interpretation, which is part of the traditional scratch-building experience.
- One builder noted moving the firewall back 50mm to accommodate a 30cc petrol engine with a Pitts-style silencer and carburettor through the firewall.
- Dry-fit major assemblies before gluing.
- Maintain accurate alignment throughout construction.
- Functional rigging wires are a scale feature that adds to the model's presence.
- Keep the tail structure as light as practical.
- Balance the completed aircraft carefully at the recommended centre of gravity.
- Fabric covering is recommended for a scale appearance, but lightweight iron-on film is also suitable.
Historical Information
Manufacturer: de Havilland Aircraft Company
Country: United Kingdom
First Flight: 1931
Primary Role: Primary Trainer
The de Havilland Tiger Moth was the primary training aircraft for the Royal Air Force and Commonwealth air forces throughout World War II. It was developed from the earlier D.H.60 Moth series, with the key changes being a swept-back wing and a more powerful engine. The Tiger Moth's docile handling characteristics made it ideal for teaching novice pilots the fundamentals of flight.
More than 7,000 Tiger Moths were built, serving with the RAF and other air forces, as well as in civilian roles. The aircraft remains a popular warbird today, with many restored examples flying at air shows worldwide.
Frequently Asked Questions
- Does this kit include the plans?
No. The original OK Model Pilot plans are required separately and are available as a free download from Outerzone, but can be included at cost - Is hardware included?
No. This is a laser-cut short kit only. - Is this suitable for beginners?
Advanced building skills are recommended for this 1/4 scale model. - Can it be covered with film covering?
Yes. Lightweight iron-on film is suitable, though fabric covering gives a more scale appearance. - Can modern radio equipment be used?
Yes. Modern giant-scale radio systems are entirely suitable. - Does the kit include strip wood?
No. Strip wood and sheeting must be supplied by the builder. - What engine is recommended?
The design is intended for .60 to .90 two-stroke glow engines or equivalent 30cc petrol engines. - What is the snap-lock construction?
The plywood fuselage features interlocking parts for accurate alignment and strong assembly.
Safety & Disclaimer
This product is a precision laser-cut short kit. Strip wood, hardware, covering materials, adhesives, electronics, power system and building supplies are not included unless specifically stated. Builder experience is recommended. Power system recommendations are suggestions only and should be selected to suit the completed aircraft and intended flying style. All specifications are based on the original OK Model Pilot design documentation and are subject to builder interpretation. The manufacturer accepts no responsibility for the final assembly, airworthiness, or operation of the completed model. The builder assumes all responsibility for the safe construction and operation of the model aircraft.
